This lights an LED from a dead battery
One transistor and a hand wound coil that light a white LED from a nearly dead 1V cell. Six parts.
Free build sheet
The parts, every wire with its length and bend points, a bend guide, both sides of the board and checkboxes to track your progress. Print it or keep it open at the bench.
Open the build sheetWhat you need
6 parts on a perfboard 11 × 19 holes, plus hookup wire.
| Qty | Part | Where to buy |
|---|---|---|
| 1 | Electrolytic Cap47uF C1 | Buy Electrolytic Cap on Amazon |
| 1 | Power Input (2-pin) J1 | |
| 1 | LED LED1 | Buy LED on Amazon |
| 1 | NPN Transistor (TO-92) Q1 | Buy NPN Transistor (TO-92) on Amazon |
| 1 | Resistor (axial)1k R1 | Buy Resistor (axial) on Amazon |
| 1 | Toroid Coil (centre tap) U1 |
Check every pin against the datasheet of the exact part in your hands before wiring.
As an Amazon Associate I earn from qualifying purchases.
Cut list
9 wires, 195 mm (7.7 in) in total, in the order the build sheet cuts them. Wire numbers match the build sheet. Each length includes 5 mm per end to go through the hole.
| Wire | Colour and net | Length | ||
|---|---|---|---|---|
| 6 | BlackVBAT D5 → F8 | D5 → F8 | 23mm | 13mm (90°) |
| 5 | BlueVBAT D3 → I3 | D3 → I3 | 23mm | Straight |
| 4 | GreenSWITCH I13 → G16 | I13 → G16 | 23mm | 10mm (90°) |
| 1 | RedBASE D17 → E15 | D17 → E15 | 18mm | 10mm (90°) |
| 7 | RedGND E5 → H5 | E5 → H5 | 18mm | Straight |
| 9 | WhiteGND H15 → G14 | H15 → G14 | 14mm | Straight |
| 3 | WhiteSWITCH H9 → H14 | H9 → H14 | 23mm | Straight |
| 2 | YellowFEEDBACK D13 → D9 | D13 → D9 | 20mm | Straight |
| 8 | YellowGND J5 → J15 | J5 → J15 | 35mm | Straight |
About this build
A Joule thief: one NPN transistor, a 1k base resistor and a hand wound centre tapped coil that oscillate at tens of kilohertz. Each time the transistor lets go, the coil stacks about 2V on top of a tired 1V cell, which is enough to light a white LED that a fresh cell alone couldn't.

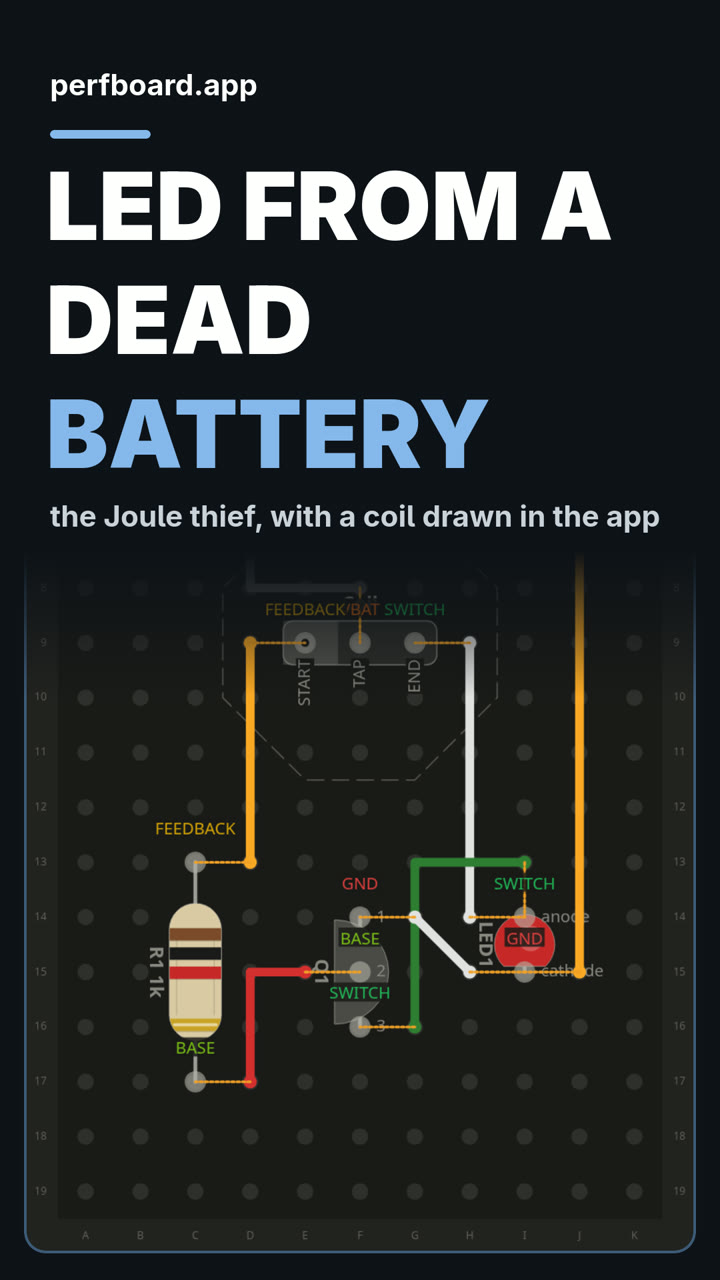

The parts library has no toroid, so the video draws the coil footprint in the app first. Wind the two wires together, then join the end of one to the start of the other at the tap. Get that backwards and the feedback is backwards too, and it won't start.
Six parts on an 11 by 19 perfboard.
